SENSOR FOR URINALS

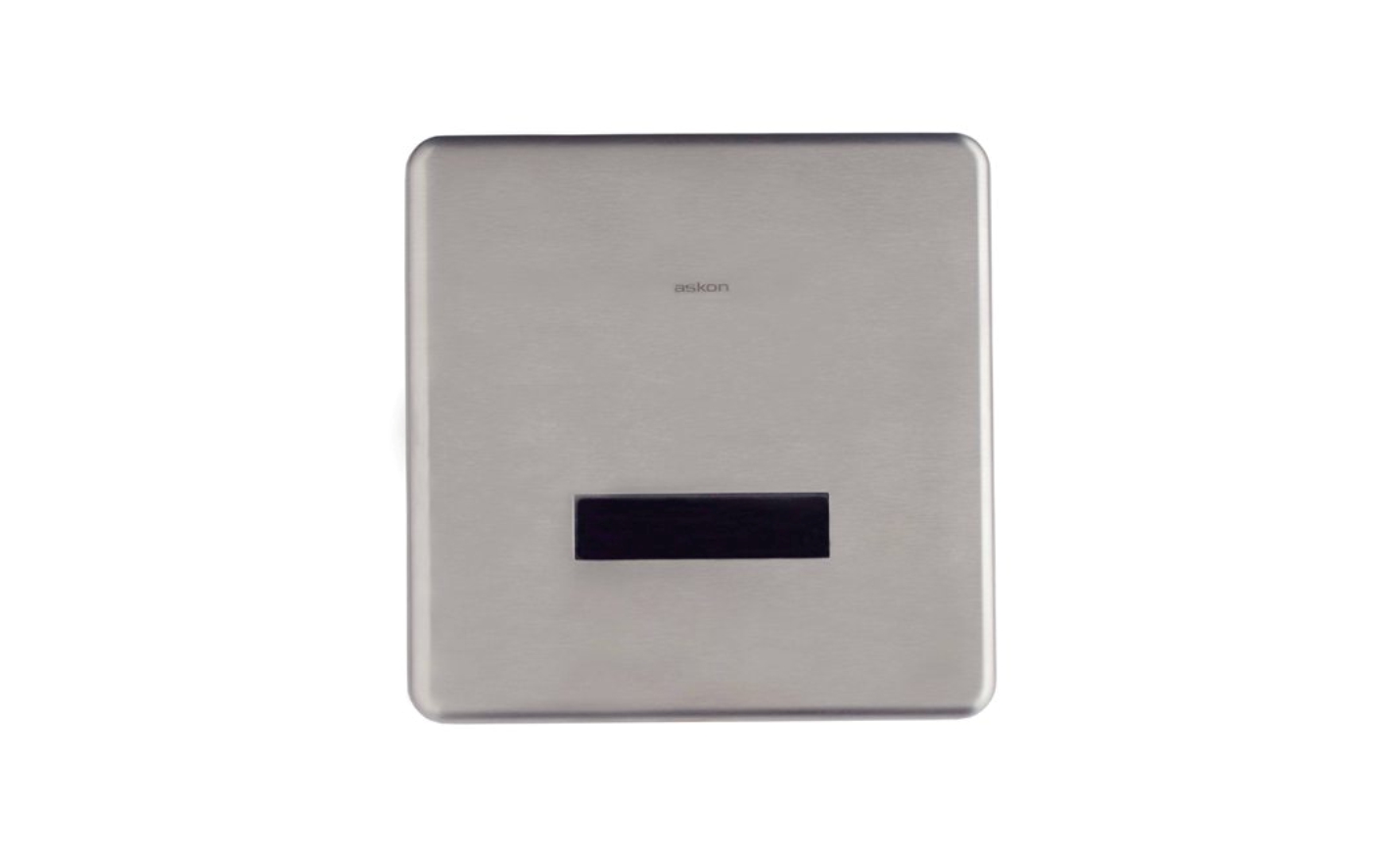

Sensor Urinal Flush Valve Front Plate
Sensor Urinal Flush Valve Front Plate

press to zoom

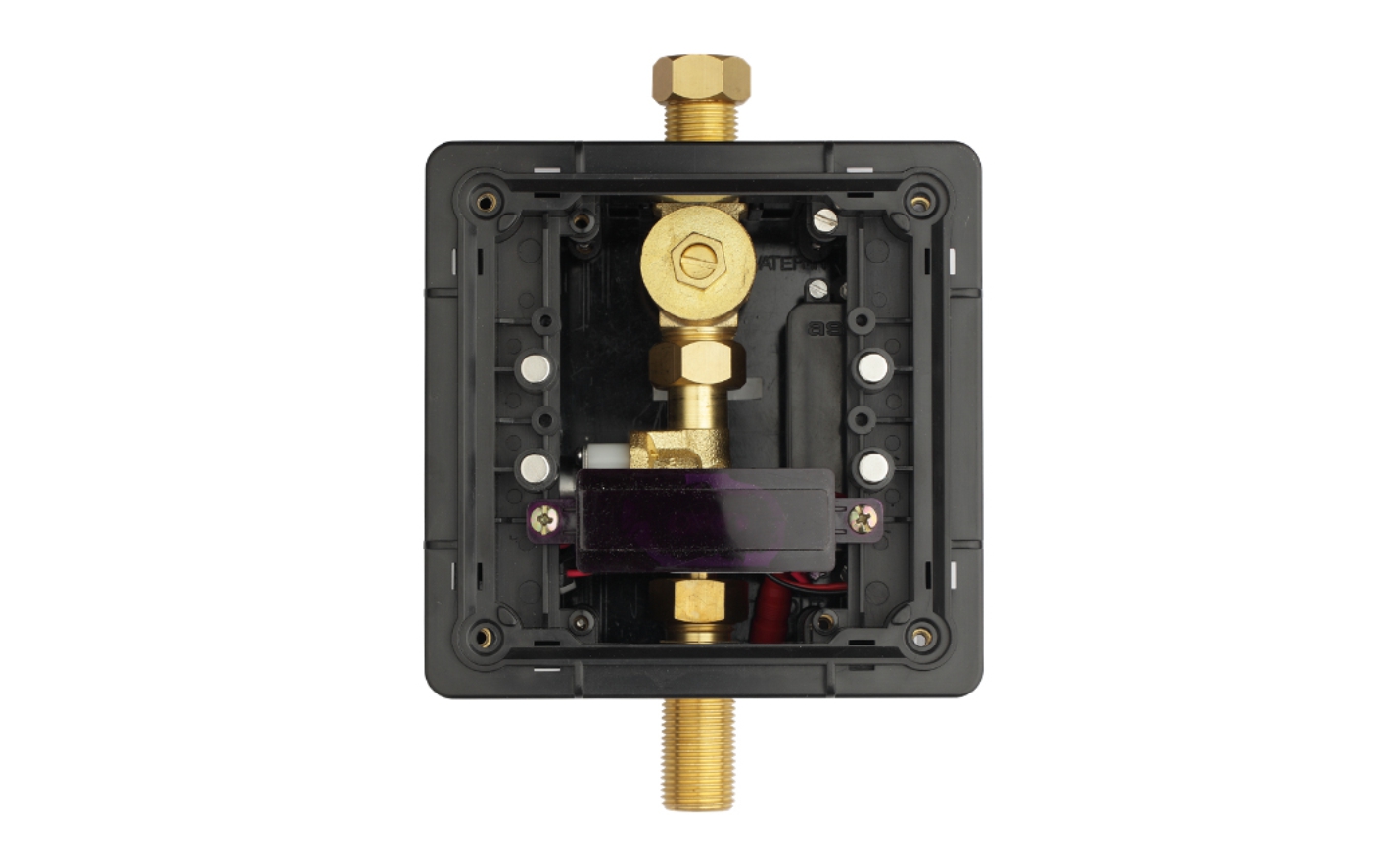

AS-07IR concealed box for urinal sensor
AS-07IR concealed box for urinal sensor

press to zoom
Urinal Sensor AS 07-IR
Urinal Sensor AS 07-IR

press to zoom
Sensor Urinal Flush Valve Front Plate
Sensor Urinal Flush Valve Front Plate

press to zoom
1/3

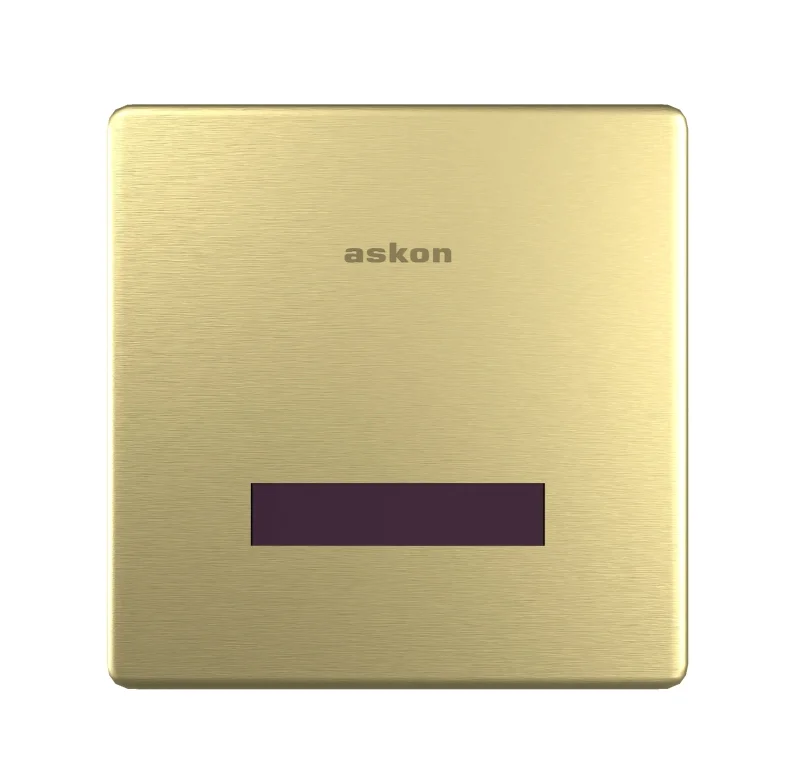

Model: AS 07-IR (E) / AS 07-IR (B)
AS 05 06 07 IR.png
Specifications:
  • Spotless finish with no visible screws

  • Equipped with our pioneering SmartSense technology for increased reliability and unmatched user experience

  • Sensing range and flush timing can be adjusted with remote. One remote works for multiple systems.

  • Concealed type

Dimensions
Urinal Sensor Concealed box dimensions.jpg
Related Products
AS 06-IR
AS 05-IR
ASU-30B

FAQ for Sensor for Urinals

What are the benefits of using sensor for urinals?



The sensors for urinals detect the users with sensors and flush automatically. The automatic operation of the sensors for urinals keeps the washrooms hygienic and odour free. They also prevent the spread of germs and virus through cross contamination in public washrooms.

Where are these sensors for urinals manufactured?



These sensors for urinals are manufactured by Askon in Mumbai, India.



 Which materials are used to make the sensors for urinals?



Askon uses high quality materials to manufacture their sensors for urinals. The concealed boxes are made from poly carbonate which makes them strong, durable and non-rusting. The flow control valve and solenoid valve are made from brass. The front fascia plates are made from stainless steel or aluminium die cast. Best quality electronic components are used to make the control circuits. The control circuits are optimized for battery consumption to make the batteries last longer.



How do sensors for urinal work?



When the user is present in the front of sensors, the flush valve will flush for 1 second which is the pre-flush. Once the user leaves the sensor detects this movement and flushes for a longer duration of 6 seconds. The flush duration can be increased by the user if required. However the pre-set flush duration is enough in most cases and increasing the flush duration will waste water.



At what stage the sensors for urinals need to be installed?



There are two types of sensors for urinals: Wall mount type and concealed type. The wall mount type are installed on the wall after the the tiles and plumbing work is completed. The concealed type sensor urinal requires the control box to be concealed in the wall. In both cases it is prudent to plan in advance regarding the type of sensor urinal that need to be installed so they can be installed in the best possible way.
